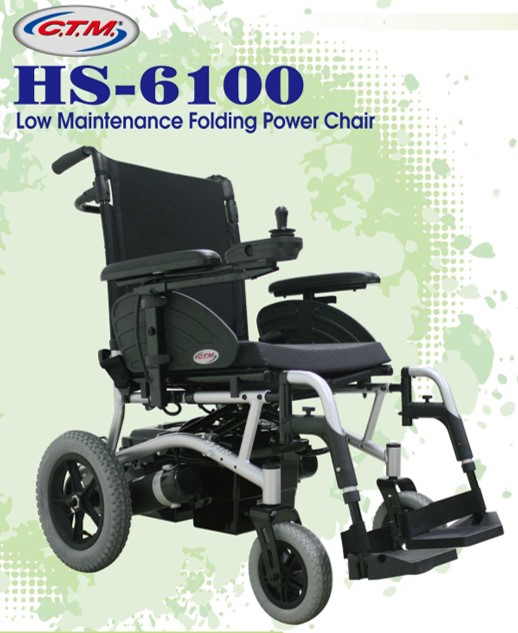

HS-6100

分類:

描述

Video

https://youtu.be/l6EbtyrMEyk

Features

  • Maximum Speed: 8 kmph/7.5 mph
  • Capacity: 136kg / 300 lbs.(For 16” or 18”)

                               145 kg / 320lbs. (For 20”)

  • Height Adjustable Armrests
  • Drop-in battery box
  • Left / right exchangeable and length adjustable joystick
  • Optional swing-away joystick

Technical Specification

Overall Length 1040 mm / 41”
Overall Width 295 mm / 23.4”” 645 mm / 25.4” 695 mm / 27.4”
Overall Height 990 mm / 40”
Wheels : Front 200 mm / 7.9”
Wheels: Rear 320 mm / 13”
Weight W / Batteries 63.2 kg / 139.3 lbs. 63.5kg / 140 lbs. 65 kg / 143.5 lbs.
Max. Speed 8 kmph / 5 mph
Weight Capacity 136 kg / 300 lbs. 136 kg / 300 lbs. 145 kg / 320 lbs.
Ground Clearance 80 mm / 3.2”
Grade Climbable 8 degrees
Curb Climbable 25 mm/ 1“
Turning Radius 850 mm / 33.5”
Brake Electro- Mechanical
Seat Width 410 mm / 16” 460 mm / 18” 510 mm / 20″
Battery Weight 25 kg/ 55 lbs.
Motor Size 420 W, 4600 r.p.m
Travel Range 19km / 12miles
Battery size (2) 12V, 36Ah
Electronics On/off key switch, battery level indicator, speed control knob
Battery charger 5A Off Board
Seat Type Padded breathable ballistic nylon back rest w / adjustable back angle and seat belt
Drive train 2 motors, rear-wheel drive
